Exploration Drilling
Exploration Drilling
Modern fleets for diamond core and reverse circulation drilling.
View PDF
Underground & Open Pit Mining
Underground & Open Pit Mining
Full-scale mining contracting services based on proven international standards, executed in partnership with KSE Madencilik (Turkey). Also, we have underground support services in partnership with Red Mining Africa.
View PDF
Mill Relining and Plant Maintenance
Mill Relining and Plant Maintenance
Mill relining (Ball, SAG etc.), optimization and asset integrity upgrades through our exclusive partnership with XP Maintenance (Australia), a global leader in mill relining and shutdown services.
View PDF
Mine Rescue & Emergency Response
Mine Rescue & Emergency Response
Establishing the first world-class mine rescue framework in Saudi Arabia through Mine Rescue Services powered by Ontario Mine Rescue Service (Canada).
View PDF
Security & Digitalization
Security & Digitalization
Advanced drone surveillance, access control and real-time monitoring integrated with digital risk management systems. In partnership with GSSG (South Africa), we provide smart, data-driven solutions that enhance safety, operational visibility and efficiency across mining operations.
View PDF
Infrastructure and logistics
support
Infrastructure and logistics
support
Our expert team provides consultancy and project management services, helping clients successfully manage their mining projects from inception to completion.
View PDFEquipment / ID No.
Model / Make
Guaranteed Productivity
Maximum Depth
Efficiency
Age
Rig 001
PRD Core 750
50 m/day
750 m
100%
<2 years
Rig 002
PRD Core 750
50 m/day
750 m
100%
<2 years
Rig 003
PRD Core 750
50 m/day
750 m
100%
<1 year
Rig 004
PRD Core 750
50 m/day
750 m
100%
<1 year
Rig 005
PRD Core 750
50 m/day
750 m
100%
<1 year
Rig 006
PRD Core 750
50 m/day
750 m
100%
<1 year
Rig 007
PRD Core 1200
50 m/day
1200 m
100%
< 1year
Rig 008
PRD Core 1200
50 m/day
1200 m
100%
< 1year
Rig 009
PRD Core 1200
50 m/day
1200 m
100%
< 1year
Rig 010
PRD Core 1200
50 m/day
1200 m
100%
< 1year
Rig 011
PRD Gold RC 200
200 m/day
250 m
100%
<2 year
Rig 012
PRD OZ RC
200 m/day
450 m
100%
<1 year
Rig 013
PRD Core RC 200
200 m/day
250 m
100%
<1 year
Rig 014
PRD Core RC 200
200 m/day
250 m
100%
<1 year
Rig 015
PRD Air Core 100
140 m/day
100 m
100%
<1 year
Rig 016
PRD Air Core 100
140 m/day
100 m
100%
<1 year
Rig 017
TETRA 2500 CORE
50 m/day
1400 m
100%
New Arrival

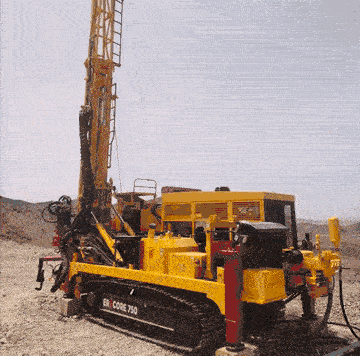

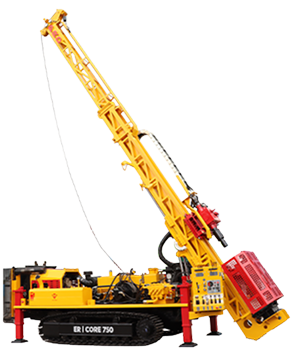

PRD Core 750
The PRD Core 750 is boasting a drilling capacity of 750 meters for NQ-size cores. This rig features a high-speed top-drive rotary head adept at handling PQ, HQ, NQ, and BQ drill sizes at angles between 45 and 90 degrees. Powered by a robust 215 hp deck engine, it ensures efficient and consistent performance. The rig is equipped with a centralized control panel for easy monitoring and control, as well as four hydraulic leveling jacks with locking check valves for enhanced safety and stability.
Drilling Depth
NQ: 750; HQ: 450 m; PQ: 250m
Rotary Head Travel
3500 mm
Pull up force
12400 kgf (35273 lb.f)
Pull down force
6300 kgf (23990 lb.f)
Pull up speed
23 m/min
Pull down speed
45 m/min
Angle Drilling
45° to 90° manual locks in 5° increments
Torque speed
1st Ratio: Torque: 5100 - 3155 Nm | Speed: 113 - 184 rpm
2nd Ratio: Torque: 2460 - 1509 Nm | Speed: 237 - 386 rpm
3rd Ratio: Torque: 1335 - 819 Nm | Speed: 436 - 711 rpm
4th Ratio: Torque: 776 - 476 Nm | Speed: 750 - 1200 rpm
Mud Pump
Hydraulic-operated triplex mud pump Displacement: 140 lpm
Pressure: 1000 psi
PRD Gold RC 200
The PRD Gold RC Rig is a robust and efficient surface exploration recovery reverse circulation drilling rig. It offers a pullup force of 10800 kg and can drill 5.5-inch diameters up to 200 m depth at angles of 45 to 90 degrees. The rig features a fabricated steel body, spur gear reduction with oil bath lubrication, and a hydraulic system powered by either a truck engine or a 260 hp deck engine. It includes a twin box mast assembly, a double-acting hydraulic feed system, and various attachments such as an RC Head, RC Hose, Cyclone, and Swivel. With 4 hydraulic leveling jacks, telescopic guides, and safety features, it provides stability and ease of use. Optional attachments, truck options, and mounting options of truck, crawler, and skid add versatility to the rig.
Air Compressor
1200 cfm - 330 psi
Pull up force
16000 kgf (35273 lb.f)
Pull down force
10880 kgf (23990 lb.f)
Pull up speed
39 m/min
Pull down speed
50 m/min
Angle Drilling
45° to 90° manual locks in 5° increments
Torque speed
Torque: 4000 Nm, Speed: 0 - 100 rpm
Rod Bin
32 nos x 6 m = 192 m
PRD OZ RC
PRD CORE 1500 boasts a remarkable drilling capacity of 1500 meters for NQ, 1800 meters for BQ, 1000 for HQ, and 650 for PQ-sized cores. Equipped with a high-speed top-drive rotary head, it efficiently handles PQ, HQ, NQ, and BQ drill sizes at angles ranging from 45 to 90 degrees. This rig has a hydraulic tank capacity of 1000 liters and is powered by a suitable deck engine. Its undercarriage weighs 35 tons, and its operating weight is 17 tons.
Drilling Depth
1800 m
Rotary Head Travel
3500 mm
Pull up force
25800 kgf (56890 lb.f)
Pull down force
17700 kgf (39028 lb.f)
Pull up speed
29 m/min
Pull down speed
66 m/min
Torque speed
Torque: 6545 Nm, SpeTorque: 6545 Nm, Speed: 0 - 100 rpmed: 0 - 100 rpm
Air Compressor
1250 cfm / 350 - 500 psi
PRD Core 1200
The PRD 1200 PD crawler-mounted rig is a reliable solution for piling applications and is capable of mud rotary drilling at 1200mm diameters up to 75m depth and DTH drilling at 6 ½” diameters up to 200 m.
Drilling Depth
PQ: 500 m
HQ: 800 m
NQ: 1200 m
BQ: 1400m
Prime mover
Suitable deck engine
Winch
Main Winch: 10 ton
Wireline Winch: 2 ton
Water Pump
Displacement: 140 lpm
Pressure: 1000 PSI
PRD Air Core 100
The PRD 1200 PD crawler-mounted rig is a reliable solution for piling applications and is capable of mud rotary drilling at 1200mm diameters up to 75m depth and DTH drilling at 6 ½” diameters up to 200 m.
Drilling Depth
100m
Hole Diameter
102 mm (4")
Rotary Head Travel
3500 mm
Pull up force
10000 kgf
Pull down force
7000 kgf
Pull up speed
33 m/min
Pull down Speed
50 m/min
Torque Speed
Torque : 3000 Nm
Rotation Speed : 0 - 100 rpm
Air Compressor
Main Winch: 10 ton
Wireline Winch: 2 ton
Rod Bin
15 nos * 3 m = 45 m
New Arrival
TETRA 2500 CORE
TETRA 2500 CORE is a high-performance core drilling rig designed for exploration and deep drilling operations. Powered by a 246 kW (330 hp) engine from MAN, Mercedes, or Cummins, it delivers strong and reliable field performance. The rig features a robust mast and feed system with 22,600 kg pull up, 12,000 kg pull down, 3.5 m feed travel, and a main hoist capacity of 18,144 kg. With crawler, truck, or skid mounting options and drilling depth up to 3000 m in BQ, it is a valuable addition to the PPCO fleet.
Power Unit
246 kW (330 hp)
Pull up force
22,600 kg
Pull down force
12,000 kg
Feed Travel
3.5 m
Depth Capacity
BQ: 3000 m
NQ: 2500 m
HQ: 1900 m
PQ: 1000 m
Main Hoist
18,144 kg
Mounting Type
Crawler / Truck / Skid
Rotation Unit
Spindle diameter: 117 mm
Side shift: 300 mm
PRD Core 750
The PRD Core 750 is boasting a drilling capacity of 750 meters for NQ-size cores. This rig features a high-speed top-drive rotary head adept at handling PQ, HQ, NQ, and BQ drill sizes at angles between 45 and 90 degrees. Powered by a robust 215 hp deck engine, it ensures efficient and consistent performance. The rig is equipped with a centralized control panel for easy monitoring and control, as well as four hydraulic leveling jacks with locking check valves for enhanced safety and stability.
Drilling Depth
NQ: 750; HQ: 450 m; PQ: 250m
Rotary Head Travel
3500 mm
Pull up force
12400 kgf (35273 lb.f)
Pull down force
6300 kgf (23990 lb.f)
Pull up speed
23 m/min
Pull down speed
45 m/min
Angle Drilling
45° to 90° manual locks
in 5° increments
Torque speed
1st Ratio: Torque: 5100 - 3155 Nm |
Speed: 113 - 184 rpm
2nd Ratio: Torque: 2460 - 1509 Nm |
Speed: 237 - 386 rpm
3rd Ratio: Torque: 1335 - 819 Nm |
Speed: 436 - 711 rpm
4th Ratio: Torque: 776 - 476 Nm |
Speed: 750 - 1200 rpm
Mud Pump
Hydraulic-operated triplex mud
pump Displacement: 140 lpm
Pressure: 1000 psi
PRD Gold RC 200
The PRD Gold RC Rig is a robust and efficient surface exploration recovery reverse circulation drilling rig. It offers a pullup force of 10800 kg and can drill 5.5-inch diameters up to 200 m depth at angles of 45 to 90 degrees. The rig features a fabricated steel body, spur gear reduction with oil bath lubrication, and a hydraulic system powered by either a truck engine or a 260 hp deck engine. It includes a twin box mast assembly, a double-acting hydraulic feed system, and various attachments such as an RC Head, RC Hose, Cyclone, and Swivel. With 4 hydraulic leveling jacks, telescopic guides, and safety features, it provides stability and ease of use. Optional attachments, truck options, and mounting options of truck, crawler, and skid add versatility to the rig.
Air Compressor
1200 cfm - 330 psi
Pull up force
16000 kgf (35273 lb.f)
Pull down force
10880 kgf (23990 lb.f)
Pull up speed
39 m/min
Pull down speed
50 m/min
Angle Drilling
45° to 90° manual
locks in 5° increments
Torque speed
Torque: 4000 Nm,
Speed: 0 - 100 rpm
Rod Bin
32 nos x 6 m = 192 m
PRD OZ RC
PRD CORE 1500 boasts a remarkable drilling capacity of 1500 meters for NQ, 1800 meters for BQ, 1000 for HQ, and 650 for PQ-sized cores. Equipped with a high-speed top-drive rotary head, it efficiently handles PQ, HQ, NQ, and BQ drill sizes at angles ranging from 45 to 90 degrees. This rig has a hydraulic tank capacity of 1000 liters and is powered by a suitable deck engine. Its undercarriage weighs 35 tons, and its operating weight is 17 tons.
Drilling Depth
1800 m
Rotary Head Travel
3500 mm
Pull up force
25800 kgf (56890 lb.f)
Pull down force
17700 kgf (39028 lb.f)
Pull up speed
29 m/min
Pull down speed
66 m/min
Torque speed
Torque: 6545 Nm,
Speed: 0 - 100 rpm
Air Compressor
1250 cfm / 350 - 500 psi
PRD Core 1200
The PRD 1200 PD crawler-mounted rig is a reliable solution for piling applications and is capable of mud rotary drilling at 1200mm diameters up to 75m depth and DTH drilling at 6 ½” diameters up to 200 m.
Drilling Depth
PQ: 500 m
HQ: 800 m
NQ: 1200 m
BQ: 1400m
Prime mover
Suitable deck engine
Winch
Main Winch: 10 ton
Wireline Winch: 2 ton
Water Pump
Displacement: 140 lpm
Pressure: 1000 PSI
PRD Air Core 100
The PRD 1200 PD crawler-mounted rig is a reliable solution for piling applications and is capable of mud rotary drilling at 1200mm diameters up to 75m depth and DTH drilling at 6 ½” diameters up to 200 m.
Drilling Depth
100m
Hole Diameter
102 mm (4")
Rotary Head Travel
3500 mm
Pull up force
10000 kgf
Pull down force
7000 kgf
Pull up speed
33 m/min
Pull down Speed
50 m/min
Torque Speed
Torque : 3000 Nm
Rotation Speed : 0 - 100 rpm
Air Compressor
Main Winch: 10 ton
Wireline Winch: 2 ton
Rod Bin
15 nos * 3 m = 45 m
TETRA 2500 CORE
New Arrival!
TETRA 2500 CORE is a high-performance core drilling rig designed for exploration and deep drilling operations. Powered by a 246 kW (330 hp) engine from MAN, Mercedes, or Cummins, it delivers strong and reliable field performance. The rig features a robust mast and feed system with 22,600 kg pull up, 12,000 kg pull down, 3.5 m feed travel, and a main hoist capacity of 18,144 kg. With crawler, truck, or skid mounting options and drilling depth up to 3000 m in BQ, it is a valuable addition to the PPCO fleet.
Power Unit
246 kW (330 hp)
Pull up force
22,600 kg
Pull down force
12,000 kg
Feed Travel
3.5 m
Depth Capacity
BQ: 3000 m
NQ: 2500 m
HQ: 1900 m
PQ: 1000 m
Main Hoist
18,144 kg
Mounting Type
Crawler / Truck / Skid
Rotation Unit
Spindle diameter: 117 mm
Side shift: 300 mm
.png)
.png)
PPM draws its strength from PPCO, a name trusted in Saudi Arabia’s industrial and infrastructure sectors.
.avif)
PPCO delivers integrated civil, mechanical and electrical solutions for infrastructure projects. This includes earthworks, roads, concrete works, oil, gas and water pipelines, as well as power lines, substations and communications infrastructure.
PPM draws its strength from PPCO, a name trusted in Saudi Arabia’s industrial and infrastructure sectors.
.avif)
PPCO delivers integrated civil, mechanical and electrical solutions for infrastructure projects. This includes earthworks, roads, concrete works, oil, gas and water pipelines, as well as power lines, substations and communications infrastructure.
At the center of PPM is a leadership team with decades of hands-on mining experience across Africa, South America and the Middle East. Our leaders have managed billion-dollar operations, created global joint ventures and steered projects through some of the most challenging environments in the world.
